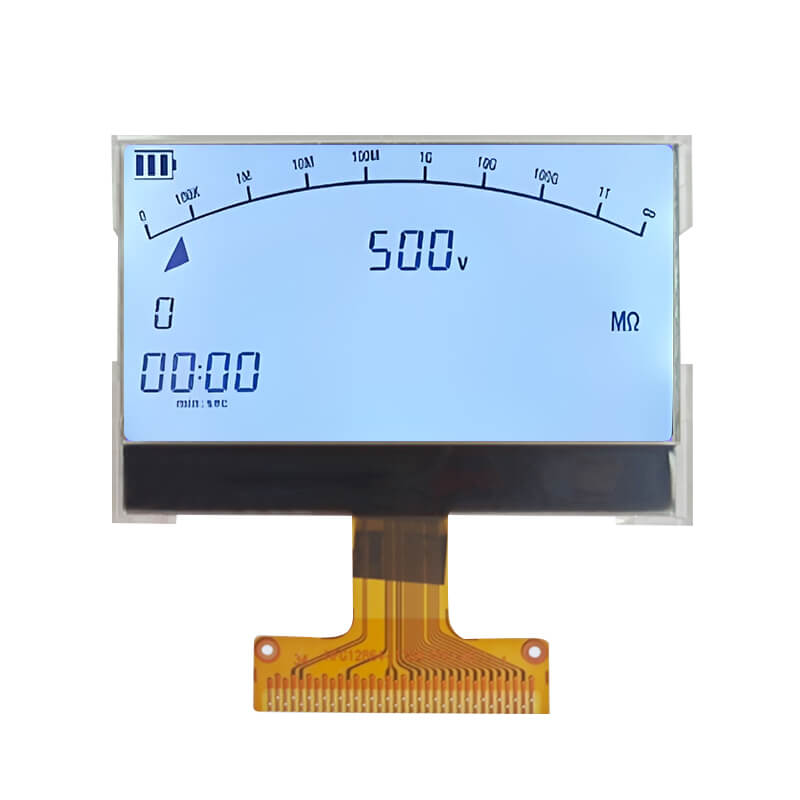

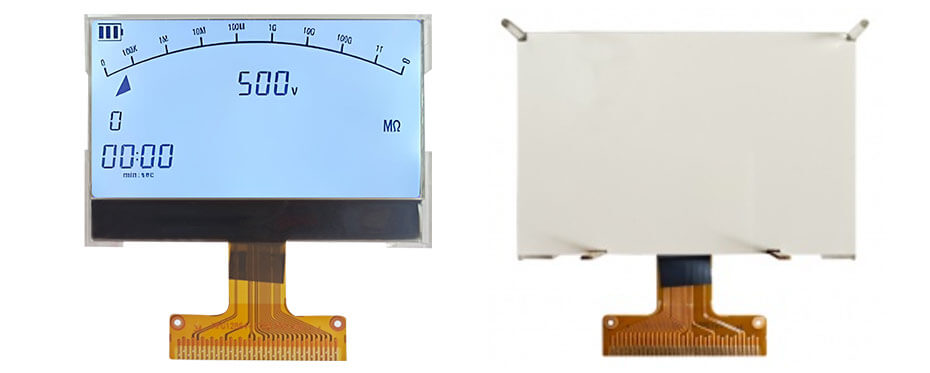

ET022PM01-JD is a 2.15-inch diagonal monochrome LCD display module with a transmissive display mode. ET022PM01-JD supports a resolution of 128×64 pixels and features a CPU interface. It has an active area of 48.61(W)×24.93(H) mm and an outline dimension of 58.8(W)×40.8(H) mm. The display's best viewing direction is at the 6 o’clock position. It operates at temperatures ranging from -10°C to 60°C and can be stored at temperatures from -20°C to 70°C. Equipped with a resistive touch panel, ET022PM01-JD is suitable for measuring instruments, rangefinders, and other embedded display applications.
More 2.2 Inch Healthcare & Medical Display Solution For Reference

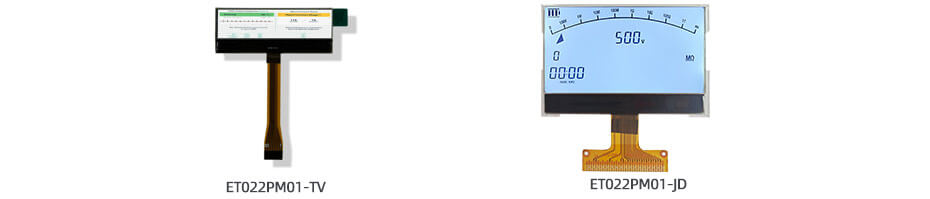

ET022PM01-TV (LCM, 28×32, SPI, Monochrome, 67×26mm, 0~50°C)
ET022PM01-JD (LCM, 128×64, CPU, Monochrome, 58.8×40.8mm, -10~60°C)
High Visibility
-High-contrast display technology ensures clear measurement data in both bright outdoor and low-light indoor conditions.
Low Power Consumption
-Energy-efficient display solutions help extend battery life for portable measuring devices.
Compact Design
-Slim and lightweight display modules enable easy integration into handheld rangefinders with limited installation space.
Multiple Display Technologies
-Available in OLED, TFT LCD, and monochrome LCD options to meet different application requirements.
Flexible Interface Options
-Support for SPI, I²C, MCU, RGB, MIPI, and other interfaces simplifies hardware integration.
Wide Operating Temperature
-Designed to operate reliably in harsh industrial and outdoor environments.
Excellent Viewing Performance
-Wide viewing angles provide clear visibility from different directions for improved user experience.
Custom Display Solutions
-Custom sizes, resolutions, brightness, touch panels, cover glass, and interface configurations are available to match specific project requirements.
Long-Term Supply
-Stable production and long product lifecycle support industrial and professional equipment manufacturers.
Laser Rangefinders
-Display real-time distance measurements, target information, battery status, and operating modes.
Golf Rangefinders
-Provide clear yardage readings and measurement data for enhanced on-course performance.
Hunting Rangefinders
-Ensure high-contrast visibility in various lighting conditions for outdoor use.
Construction Measuring Tools
-Display distance, area, volume calculations, and measurement settings for professional construction applications.
Surveying Instruments
-Support accurate data presentation in total stations, laser measuring devices, and field surveying equipment.
Industrial Measuring Equipment
-Deliver stable display performance for precision measurement, inspection, and automation systems.
Optical Measuring Devices
-Present measurement values and system information with high clarity for optical instruments.
Portable Test & Measurement Instruments
-Ideal for handheld electronic measuring devices that require compact size, low power consumption, and reliable operation.
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
