15.0 inch lcd ET150WX01-R with 1024x768 resolution high brightness display 1 channel LVDS FOB Reference Price:Get Latest Price

  • Part No.:ET150WX01-R
  • Size:15″ inch
  • Resolution:1024x768
  • Panel Interface:
  • Display mode:TN

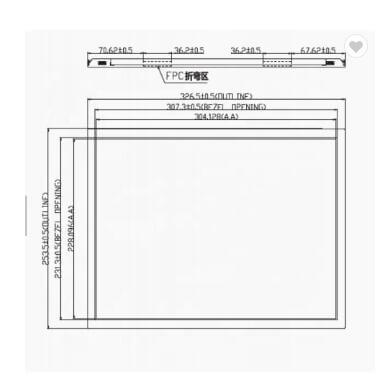

  • Outline Dimension:326.5(H)x253.5(V)x7.2(D)
  • Active Area:304.128(H)x228.096(V)
  • Viewing Angle L/R/U/D:60 80 80 80
  • Brightness（cd/m2）:800cd/m2
  • Operation / Storage Temp:0～+65℃ / -20～+65℃
  • Touch:no
Get a quote

Youritech lcd ET150WX01-R 15.0 inch lcd with 1024x768 resolution high brightness display 1 channel LVDS



Model No.: ET150WX01-R Brightness: 800cd/m2
Brand: Youritech Interface: 1 channel LVDS
Panel Size: 15.0" Viewing Angle: 40 40 40 40
Pixel: 1024*768 Display Mode: TN
Active Area: 304.128(H) x 228.096(V) Storage Temperature:  -30~80℃
Contrast Ratio: 800:1 Operation Temperature:  -20~70℃

Youritech lcd ET150WX01-R 15.0 inch lcd with 1024x768 resolution high brightness display 1 channel LVDS

Youritech lcd ET150WX01-R 15.0 inch lcd with 1024x768 resolution high brightness display 1 channel LVDS

Youritech lcd ET150WX01-R 15.0 inch lcd with 1024x768 resolution high brightness display 1 channel LVDS

Youritech lcd ET150WX01-R 15.0 inch lcd with 1024x768 resolution high brightness display 1 channel LVDS
