13.3 Inch 4K LCD Display 3840x2160 eDP IPS LCD Module For Digital Signage

13.3 Inch 3840x2160 Display Overview

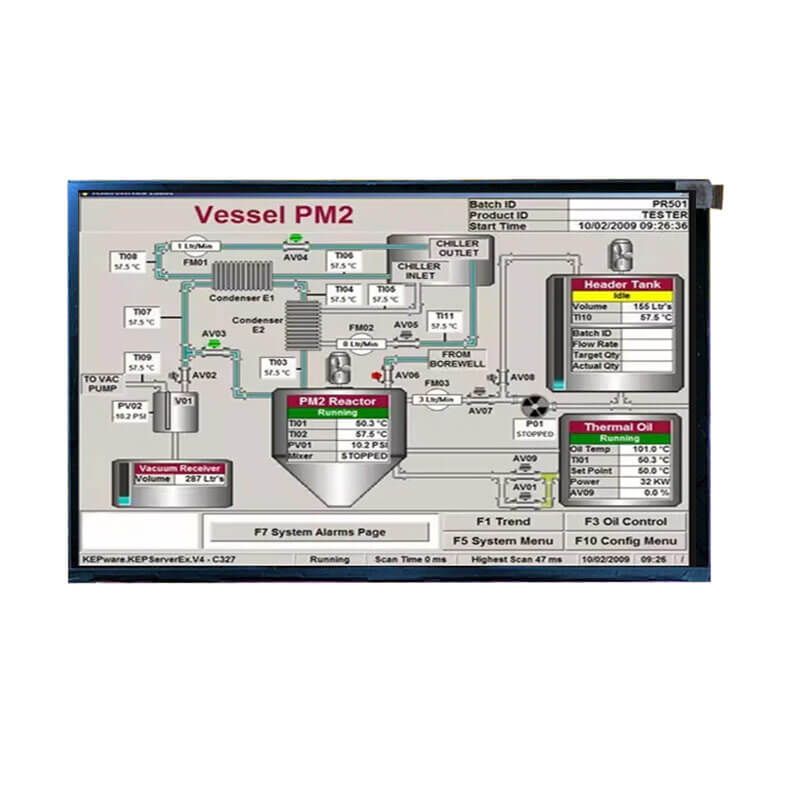

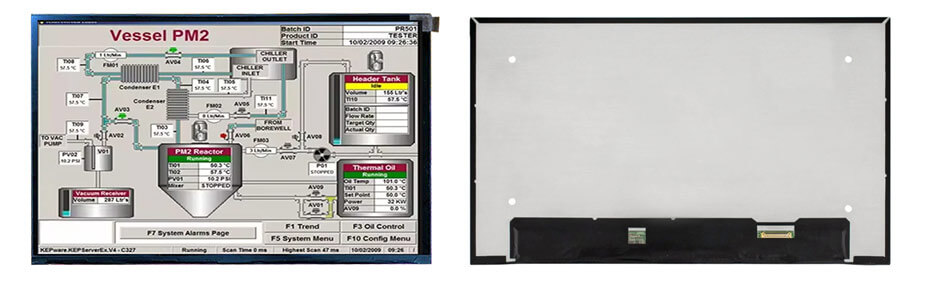

NE133QUM-N42 supports display 3840(RGB)×2160 (UHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe, it's pixel density is 332 PPI. As for mechanical detail, it features active area of 293.76(W)×165.24(H) mm, outline size of 298.76(W)×176.42(H)×4.6(D) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 210g (Max.), shape stype of Slim (PCBA Bent, T≤3.0mm). As a ADS, Normally Black, Transmissive LCM product, NE133QUM-N42 can provides 300 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (sRGB). This product adopted 9S5P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. NE133QUM-N42 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

More 13.3 Inch 4k Display For Reference
ET133UH01-R (LCM, 3840x2160, eDP, 2000nits, 0~50°C, 298.96x177.21mm)
N133DCE-GP1 (LCM, 3840x2160, eDP, 340nits, 0~50°C, 299.46x186.67mm)
NE133QUM-N42 (LCM, 3840x2160, eDP, 300nits, 0~50°C, 298.76x176.42mm)
ATNA33TP11 (OLED, 3840x2160, eDP, 400nits, -20~70°C, 297.76x186.34mm)
ATNA33TP10 (OLED, 3840x2160, eDP, 400nits, -20~70°C, 297.76x173.34mm)
