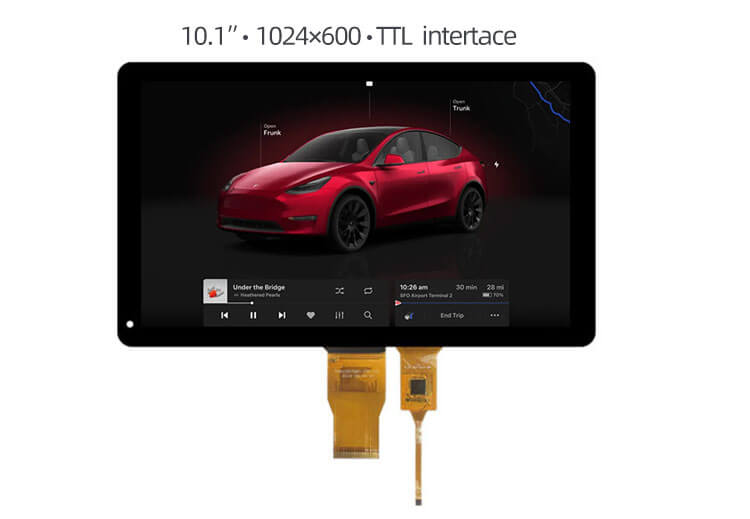

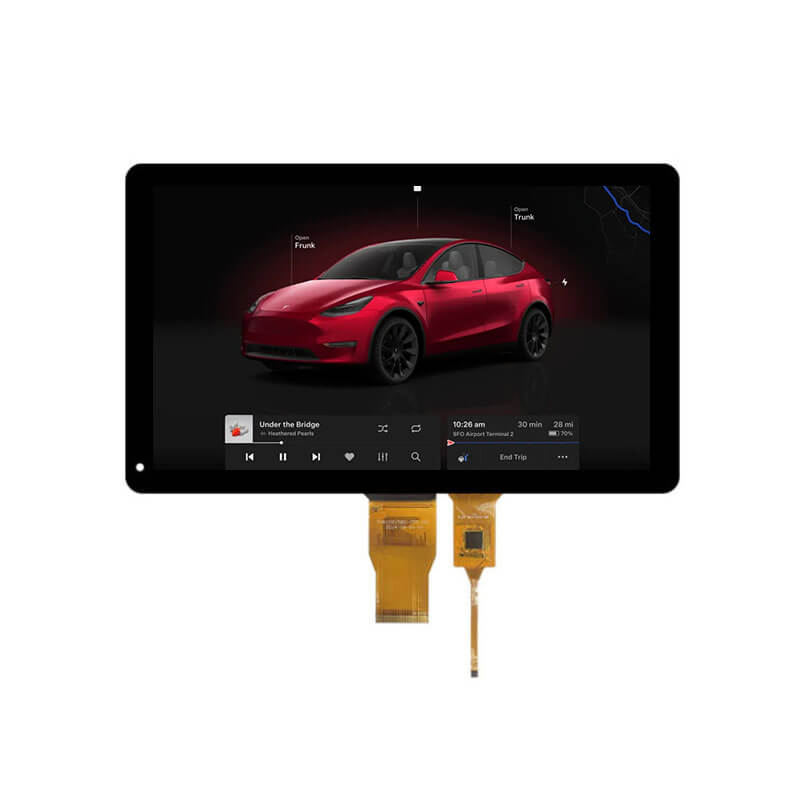

10.1 Inch 1024x600 Display Overview

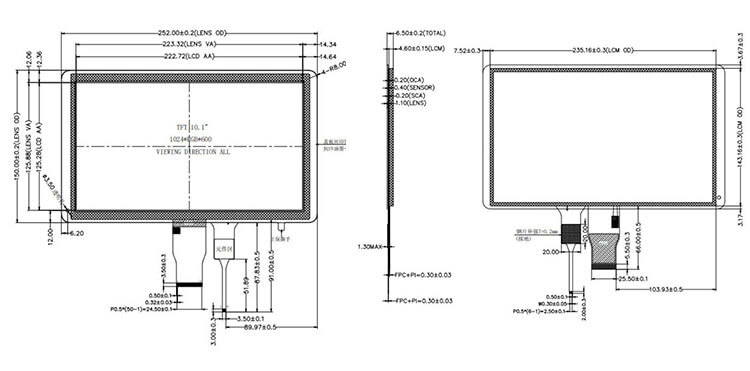

The ET101WS11-TT is a 10.1-inch TFT LCD display designed for high brightness and versatile applications. It offers a resolution of 1024x600, delivering clear and detailed visuals in a wide-screen format. The display has an active area of 222.72mm x 125.28mm, with outline dimensions of 252mm x 150mm, making it suitable for a variety of devices and installations. With a brightness of 700 nits, it ensures excellent visibility even in bright environments, providing vibrant and sharp images. The display operates in transmissive mode and uses a TTL interface for reliable performance and easy integration. The viewing angles are wide at 85° in all directions (L/R/U/D), ensuring consistent clarity from multiple perspectives. The ET101WS11-TT operates efficiently within a temperature range of -20°C to 70°C for operation and -30°C to 80°C for storage, making it suitable for a variety of industrial and commercial environments. This display does not include touch functionality.
Medium Size Display List For Reference
| Inch | Resolution | LCM Driver chip |
LCM Dimensions | Display area | LCD interface | Reference brightness | CTP/RTP |
| 5 | 800x480 | ST7262 | 120.7x75.9x2.95 | 108x64.8 | RGB 24 BIT | 600 | CTP |
| 480x854 | ST7701S | 66.4x120.05x2.05 | 61.56x109.53 | RGB 24 BIT | 400 | / | |
| 800x480 | ST7262 | 120.7x75.9x3.0 | 108x64.8 | RGB 24 BIT | 1500 | / | |
| 720x1280 | ST7703 | 65.3x119.28x1.64 | 62.1x110.4 | MIPI 4 LANE | 350 | CTP | |
| 480x854 | ST7701S | 65.3x119.3x2.05 | 61.56x109.53 | MIPI 2 LANE | 350 | / | |
| 480x854 | ST7701S | 66.4x120.05x2.05 | 61.56x109.53 | MIPI 2 LANE | 1000 | / | |
| 720x1280 | NV3051FL | 65.4x119.3x1.59 | 61.56x109.53 | LVDS | 400 | / | |
| 1080x1920 | HX8399C | 64.76x118.7x1.5 | 61.88x110.02 | MIPI 4 LANE | 800 | / | |
| 720x1280 | NV3052C | 65.4x119.3x1.99 | 61.56x109.53 | RGB 24 BIT | 300 | / | |
| 5.2 | 1080x1920 | HX8399C | 67x122.6x1.7 | 64.8x115.2 | MIPI 4 LANE | 1200 | CTP |
| 5.5 | 1080x1920 | HX8399C | 70.04x128.29x1.72 | 68.04x120.96 | MIPI 4 LANE | 1200 | CTP |
| 1080x1920 | HX8399C | 70.04x128.29x1.72 | 68.04x120.96 | MIPI 4 LANE | 500 | CTP | |
| 720x1280 | ST7703 | 70.34x128.1x1.62 | 67.93x120.7 | MIPI 4 LANE | 300 | / | |
| 720x1280 | ST7703 | 70.34x128.1x1.62 | 67.93x120.7 | MIPI 4 LANE | 1000 | / | |
| 6 | 720x1280 | RM68200 | 76.84x139.46x2.02 | 77.98x131.52 | MIPI 4 LANE | 500 | / |
| 720x1280 | ILI9881C | 76.84x139.46x2.02 | 77.98x131.52 | MIPI 4 LANE | 450 | CTP | |
| 1080x1920 | FT8275 | / | 74.52x132.48 | MIPI | 400 | / | |
| 7 | 1024x600 | HX8282A11 | 164.9x100x3.45 | 154.08x85.92 | RGB 24 BIT | 800 | / |
| 720x1280 | ILI9881C | 91.44x165.91x2.35 | 86.94x154.56 | MIPI 4 LANE | 350 | / | |
| 1024x600 | HX8282A11 | 164.9x100x3.5 | 154.08x85.92 | LVDS 8 BIT | 1300 | / | |
| 800x1280 | ILI9881C | 99.65x160.85x2.4 | 94.2x150.72 | MIPI 4 LANE | 550 | / | |
| 600x1024 | JD9365DA | 94.85x163.14x2.73 | 89.28x184.8 | MIPI 4 LANE | 350 | CTP | |
| 600x1024 | JD9365DA | 94.85x161.29x2.53 | 89.28x184.8 | MIPI 2 LANE | 800 | CTP | |
| 800x480 | HX8264-E | 164.9x100x5.5 | 154.08x85.92 | TTL | 450 | / | |
| 800x1280 | ILI9881C | 99.65x160.85x2.4 | 94.2x150.72 | MIPI 4 LANE | 1100 | CTP | |
| 1024x600 | EK79007AD2 | 164.9x100x3.45 | 154.08x85.92 | MIPI 4 LANE | 700 | CTP | |
| 1024x600 | HX8282A11 | 164.9x100x3.45 | 154.08x85.92 | RGB | 1000 | CG | |
| 1200x1920 | HX8279 | 105.18x163.34x3.65 | 94.5x151.2 | MIPI 4 LANE | 1600 | / | |
| 8 | 1024x768 | / | 183x141x5.5 | 162.5x121.54 | LVDS | 1000 | / |
| 800x1280 | JD9365DA | 114.66x184.24x2.41 | 107.64x172.22 | MIPI 4 LANE | 450 | CTP | |
| 800x1280 | NV3052C | 114.66x184.24x2.41 | 107.64x172.22 | LVDS | 350 | CTP | |
| 1024x600 | HX8282 | 192.8x116.9x6.45 | 176.64x99.36 | LVDS | 450 | / | |
| 1024x768 | / | 174x136x2.5 | 162.5x121.54 | LVDS | 300 | / | |
| 1200x1920 | / | / | 176.64x99.36 | MIPI | / | / | |
| 1920x1200 | / | / | 172.22x107.64 | LVDS | / | / | |
| 9 | 1024x600 | HX8282A11 | 210.7x126.5x5 | 196.61x114.15 | LVDS 8 BIT | 450 | / |
| 9.7 | 1024x768 | / | 210.21x164.25x2.85 | 196.6x147.46 | LVDS | 1000 | / |
| 10.1 | 800x1280 | JD9365DA | 143x228.6x2.7 | 135.36x216.58 | MIPI 4 LANE | 350 | / |
| 800x1280 | JD9365DA | 143x228.6x2.7 | 135.36x216.58 | MIPI 4 LANE | 700 | CTP | |
| 1024x600 | HX8282A11 | 235x143x4.5 | 222.72x125.28 | LVDS | 450 | / | |
| 1200x1920 | HX8279 | 143x228.6x2.56 | 135.36x216.58 | MIPI 4 LANE | 300 | / | |
| 1280x800 | EK79202 | 229.46x149.1x2.6 | 216.96x135.6 | LVDS | 350 | / | |
| 1280x800 | EK79202 | 229.46x149.1x4.4 | 216.96x135.6 | LVDS | 1000 | / | |
| 800x1280 | NV3051F1 | 143x228.6x2.8 | 135.36x216.58 | LVDS 8 BIT | 400 | CTP | |
| 1920x1200 | / | 229.25x149.8x4.25 | / | LVDS | 1000 | / | |
| 1024x600 | / | 235x143x4.5 | / | RGB | 700 | / | |
| Touch Screens are Available and Optional | |||||||
10.1 Inch 1024x600 Display Custom LCD Solutions for Diverse Applications
Brightness from 0-3000 for perfect display effect achievement.
100% NTSC makes the vividness of the picture better and the color transition in the picture more natural.
Color Temperature is positive white at around 5500K, warm white (yellowish) at 3500K and also cool white (cold) at 6500K.
Driver circuit with sufficient voltage and current values to meet output requirements and reduce the secondary development cycle.
Heat dissipation for high-brightness products to advance design of reasonable heat dissipation structure
Power consumption, we increase the brightness without increasing the power consumption.
Cables, Backlighting also requires cables, either through an FPC connected to the LCD's FPC and controlled through a port, or a separate cable that controls it through a connector.
LED life reached the standard of 30K hours Min. 50K, 70K, 100K hours are all achievable.
10.1 Inch 1024x600 Display Touch screen,standard type and customization
10.1 Inch 1024x600 Display Driver board/adapter board, standard type and design customization
DEMO board, H-DMl board, other customized board, etc.
10.1 Inch 1024x600 Display Embedded Integrated Solution
UART display solution, H-DMl display solution, Window display solution, Android display solution, Raspberry Pi solution, portable secondary screen solution, etc.
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
