1.54 Inch Square Display Overview

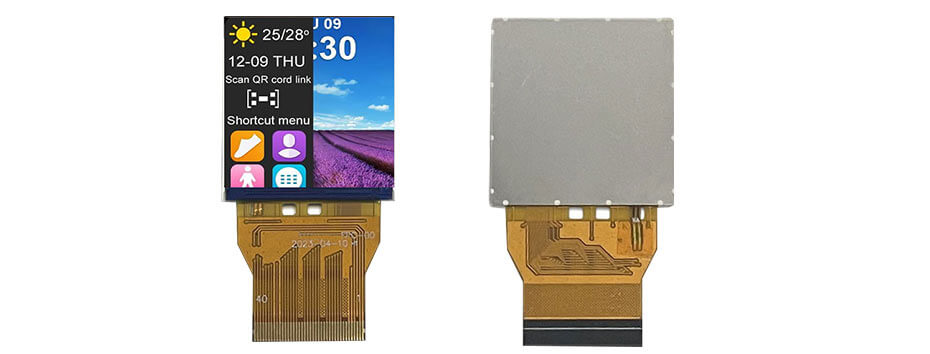

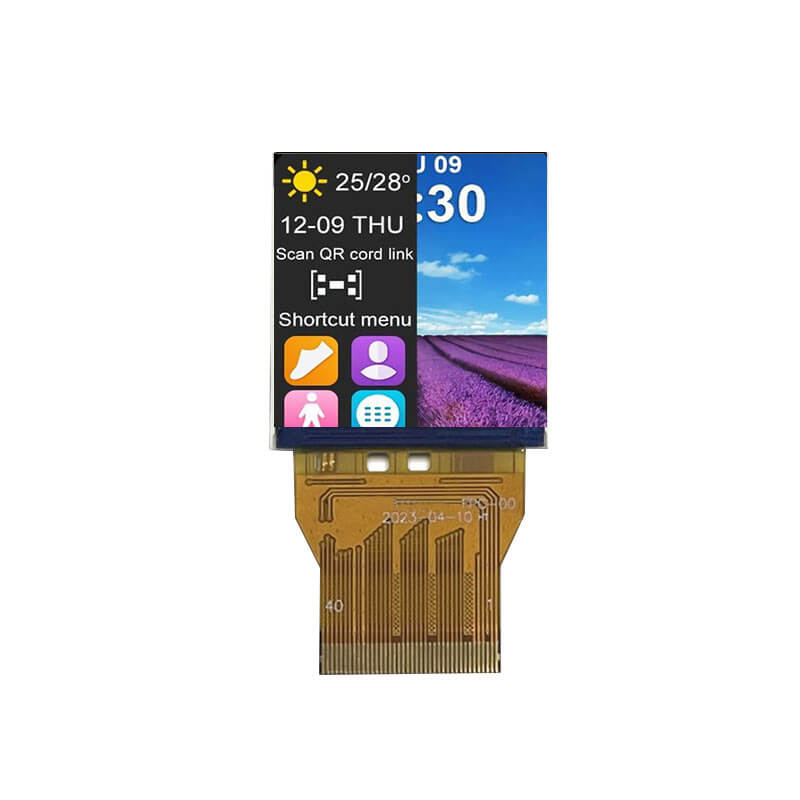

ET015SQ01-T is a 1.54-inch diagonal square TFT LCD display featuring a 320×320 resolution and a TTL interface. The display operates in transmissive mode and provides an active area of 27.74(W)×27.74(H) mm, with an outline size of 31.52(W)×33.72(H) mm. ET015SQ01-T delivers a high typical brightness of 700 cd/m² and offers wide viewing angles of 80° in all directions (L/R/U/D). It is designed for reliable operation over a temperature range of –20 °C to 70 °C and storage from –30 °C to 80 °C. This model does not include touch functionality.

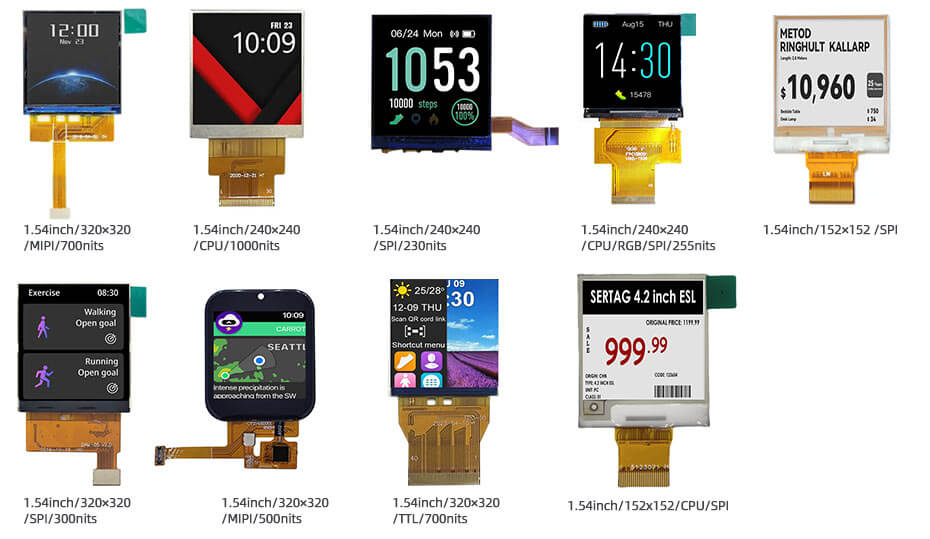

More 1.54 Inch Square Display For Reference
ET015HV01-T (320x320, MIPI, 700nits, -20~70°C, 31.52x33.72mm)
ET015QV02-T (240x240, CPU, 1000nits, -20~70°C, 31.92x35.11mm)
ET015SQ02-R (240x240, SPI, 230nits, -20~70°C, 31.52x35.1mm)
ET015SQ01-K (240x240, CPU/RGB/SPI, 255nits, -20~70°C, 33.32x36.06mm)
ET015SQEP01-WF (152x152, SPI, Monochrome, -20~60°C, 31.8x37.32mm)
ET015SQ01-EXT (320x320, SPI, 300nits, -20~70°C, 31.52x33.72mm)
ET015SQ01-AT (320x320, MIPI, 500nits, -10~60°C, 36x43mm)
ET015SQ01-T (320x320, TTL, 700nits, -20~70°C, 31.52x33.72mm)
ET015SQEP02-A (152x152 , CPU/SPI, Tri-color, 0~40°C, 31.8x37.32mm)
