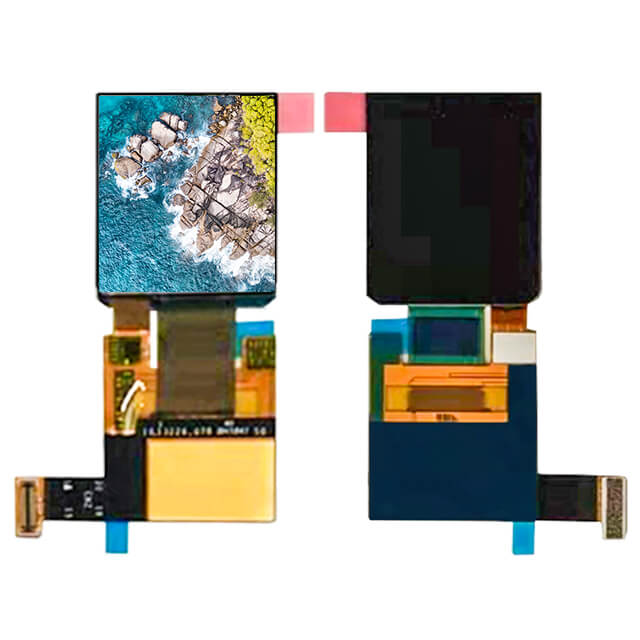

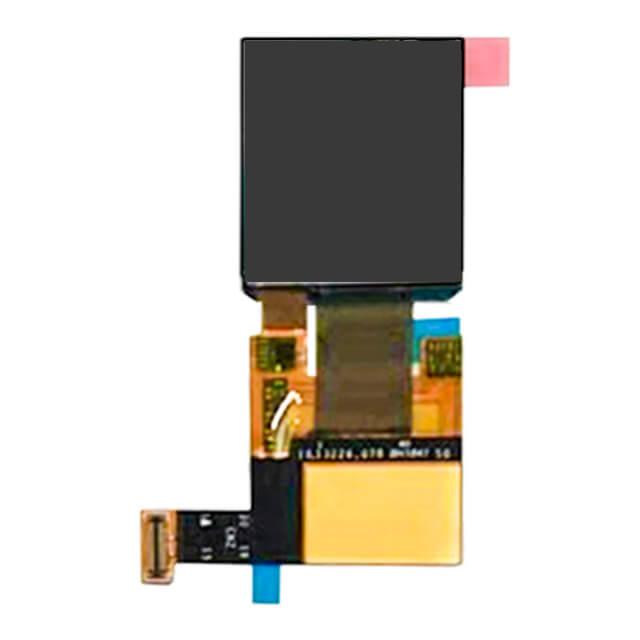

1.4 inch 320x360 square capacitive amoled display mipi interface oled lcd panel high contrast RM67162 IC for smart watch

  • Part No.:ET014AM06
  • Size:1.4″ inch
  • Resolution:320x360
  • Panel Interface:MIPI
  • Display mode:AM-OLED
  • Outline Dimension:26.04x31.78
  • Active Area:23.84x26.82
  • Viewing Angle L/R/U/D:80/80/80/80
  • Brightness(cd/m2):350cd/m²
  • Operation / Storage Temp:-40~80°C / -20~70°C
  • Touch:no

ET014AM06

Product size 1.4-inch Type AM-OLED, OLED
Pixel Format 320(RGB)×360  340PPI Configuration RGB Vertical Stripe
Active Area 23.84(H)×26.82(V) mm Outline Dim. 26.04(H)×31.78(V) mm
Luminance 350 cd/m² (Typ.) Contrast Ratio 10000:1 (Min.) (TM)
View Direction Symmetry Response Time 2 (Typ.)(Tr+Td)
Viewing Angle 80/80/80/80 (Typ.)(CR≥1000) Operating Mode -
Support Color 16.7M   105% NTSC Light Source self
Weight TBD Designed For Wearable
Frequency 60Hz Touch Panel PCAP
D-IC Detail COF Built-in RM67162
Interface Type MIPI (4 data lanes) , 30 pins Connector
Power Supply 1.8/2.8/4.6/-2.4V (Typ.)(VDDIO/VCI/ELVD/ELVS)
Environment Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -40 ~ 80 °C
